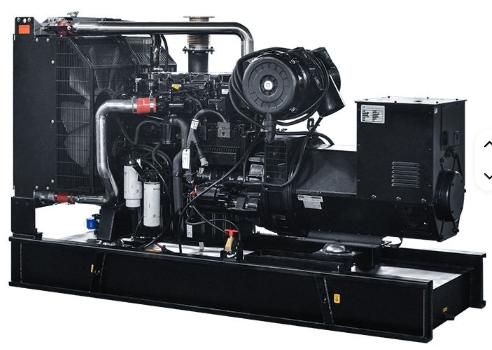

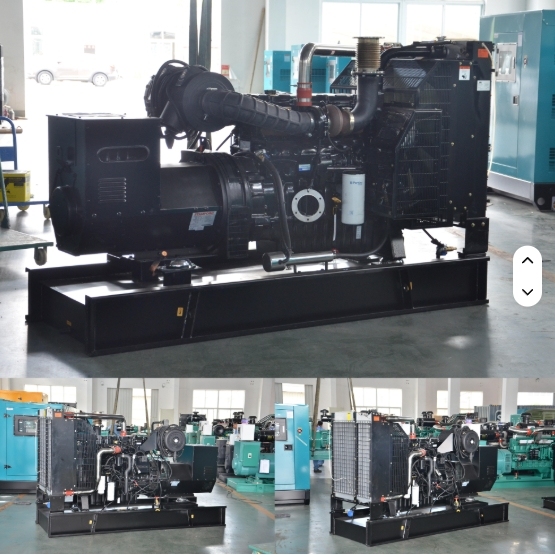

Name: Diesel Generator丨220GF丨Perkins
Brand: SHRAISE
SKU: Perkins 1506A-E88TAG3 L
Availability: InStock
Rating: 5 (1 reviews)

Features

Heavy Duty Engine -- A rugged, four-stroke industrial diesel engine provides reliable power and quick response to load changes.
Alternator -- Multiple sizes of alternators offer optional motor starting capability. They utilize low-reactance, 2/3-pitch stator windings for low waveform distortion under nonlinear loads and short-circuit fault clearing.
Control System -- An electronic control system is standard, providing complete generator set system integration, including automatic remote start/stop, precise frequency and voltage regulation, alarm and status information display, output metering, and automatic shutdown upon fault detection.
Cooling System -- The standard cooling package provides reliable operation in temperatures up to 50°C (122°F).
Low-Noise Enclosure -- The user-friendly design and compact overall enclosure reduce noise and protect the generator set. The 2mm steel casing is rainproof and sturdy, with a surface that's resistant to UV rays, rain, abrasion, and fading. Rust- and corrosion-resistant stainless steel bolts are used. A reinforced mechanical door lock ensures long service life. Flame-retardant, sound-absorbing foam is used internally to effectively reduce noise and enhance environmental protection. A top-mounted operating light facilitates nighttime operation.
Fuel Tank--independent bottom, easy to disassemble and maintain. A wavy baffle is suitable for cutting operations. The lockable refueling port provides convenient refueling and prevents theft. A mechanical fuel gauge is standard, and a customizable electronic fuel gauge allows for on-screen fuel level monitoring. Specialized high-pressure fuel hoses are resistant to oxidation, high temperatures, and high pressures, ensuring long service life. A special anti-flatulence fuel tank cap ensures safety.
Innovative design & prototype testing – these are the key elements to the success of "RAISE INDUSTRIES" in Power by Design. But there's more to it than that. Our dedication to component testing, reliability testing, environmental testing, structural testing, and life testing, as well as testing to CSA, NEMA, EGSA, and other standards, ensures you can choose a SHRAISE generator set with confidence that these systems will deliver superior performance.
Warranty & Service – A comprehensive warranty and a global network of distributors and dealers are your support.

Generator Set Specifications

	Standby 50 Hz		Prime 50 Hz
Model	kW	kVA	kW	kVA
220GF	226	283	206	258	1506A-E88TAG3 L

	Standby 60 Hz		Prime 60 Hz
Model	kW	kVA	kW	kVA
220GF	256	320	232	290	1506A-E88TAG3 L

Engine Specifications

Engine	1506A-E88TAG3 L
Prime Power	223 kW	252 kW
Engine Speed	1500 rpm	1800 rpm
Compression Ratio	16.1:1
Aspiration	Turbocharged aftercooled
Bore × Storke	112 mm × 149 mm
Displacement	8.8 L
No. of Cylinders	6
Speed Control	Electronic
Lubrication Capacity	41 L
Coolant Capacity	29.6 L

Alternator Specifications

Type	Brushless, 4-pole, all-copper, single-point, rotating magnetic field
Stator	2/3 pitch
Number of phases	3-phase
Insulation system	Class H, compliant with NEMA MG1-1.65
Power factor	1.0/0.8 hysteresis
Excitation method	Automatic voltage regulation (AVR)
Connection method	3-phase, 4-wire
Cooling method	Fan-cooled
Telephone influence factor (TIF)	<50°C, compliant with NEMA MG1-22.43
Telephone harmonic factor (THF)	<3%

Alternator Brands Optional

Generator Set Options

Fuel Tank
☑ Base Fuel Tank
□ External Independent Fuel Tank

Engine
☑ Engine Air Filter:
□ Standard
☑ Industrial
☑ Shutdown - Low Oil Pressure Fault Shutdown
☑ Extension Hose - Oil Drain
□ Engine Oil Heater

Alternator
☑ AVR Self-Excitation
☑ 120°C Temperature Rise Generator
□ 105°C Temperature Rise Generator
□ Generator Heater, Single Phase
□ Single-Phase Output Generator

Control
□ AC Output Voltmeter/Amperemeter
☑ Shutdown Switch - Emergency Stop
☑ Auxiliary Output Relay
☑ Auxiliary Signal Input and Relay Output

Electrical
☑ 1, 2, or 3 Circuit Breakers
□ 80% Load Protection Circuit Breaker
□ 80%/100% Load Overcurrent Protection Circuit Breaker
□ Battery Float Charger

Enclosure
□ T1 Class Low Noise Enclosure
☑ T2 Low-Noise Cabinet
□ Rainproof Cabinet with Muffler

Cooling System
☑ Shutdown - High Temperature, Low Coolant
☑ Warning - High Temperature, Low Coolant
☑ Extension Hose - Coolant Drain
□ Coolant Heater Option:
□ <4°C (40°F) - Cold Weather
□ <-18°C (40°F) - Extreme Cold

Exhaust System
☑ Exhaust Connector
☑ Exhaust Muffler

Towing System
□ Single-Axle or Double-Axle Trailer
□ Support Legs Mechanical/Hydraulic
□ Tires Tubeless/Solid Roll-On
□ Trailer Drawbar:
□ Off-Road Drawbar - <40 km/h
□ On-Road Drawbar - <80 km/h

Warranty Support
□ Basic Warranty - 2 year/3000 hours, primary
☑ Basic Warranty - 1 year/1500 hours, primary
□ 3-year spare warranty optional
□ 5-year spare warranty optional

Generator Set Accessories

□ Coolant heater
□ Battery heater kit
□ Engine oil heater
□ Remote control displays
□ Auxiliary output relays (2)
□ Auxiliary configurable signal inputs (8) and relay outputs (8)
□ Annunciator - RS485
□ Audible alarm

□ Remote monitoring device
□ Battery charger – stand-alone, 12V
□ Circuit breakers
□ Enclosure Sound Level 1 to Sound Level 2 upgrade kit
□ Base barrier - elevated generator set
□ Mufflers - industrial, residential or critical
□ Alternator PMG excitation
□ Alternator heater

Control System

Intelligent Control - An integrated generator set control system that provides voltage regulation, engine protection, and an operator interface.

Monitoring - Provides battery monitoring and testing capabilities, as well as an intelligent starting control system.

RS485 - Network interface (standard) to devices such as remote annunciator for NFPA 110 applications.

Ambient operation - Suitable for operation in ambienet temperatures from -40°C to +70°C and altitudes to13,000 feet (5,000 meters).

Controller Brands Optional

Controller Function

Plain text multilingual LCD display	Simple user interface for easy operation
Mode Button	Automatic:Automatic start in case of mains failure
	Manual:Start is controlled by the starter and the device remains on. Transfer to load if utility power fails
	Stop:Start is controlled by the starter and the device remains on. If a utility fails, it will be transferred to the load
Prepare for operation/maintenance messages	Standard
Engine run time indication	Standard
Programmable start-up delay between 2-1500 seconds	Standard (Distributor Programmable Only)
Mains voltage loss/restoration adjustable	Real time
Future Set Ability Exerciser/Exercise Set Error Warning	Standard
Operation/alarm/maintenance log	50 events
Engine start sequence	Loop Start: 16 seconds on, 7 seconds off (maximum duration 90 seconds)
Starter Lock	The starter does not re-engage until 5 seconds after the engine stops
Smart Battery Charger	Standard
Charger Failure / Missing AC Warning	Standard
Low Battery/Battery Problem Protection and Battery Condition Indication	Standard
Automatic Voltage Regulation With Overvoltage and Undervoltage Protection	Standard
Under frequency/Overload/Step Over current Protection	Standard
Safety Fuse/Fuse Problem Protection	Standard
Automatic Low Oil Pressure	Standard
Over crank/Over speed (@ 72 Hz)/pm Sense Loss Shutdown	Standard
Engine High Temperature Shutdown	Standard
Internal Fault/ Miswiring Protection	Standard
Common External Fault Capability	Standard
Field Upgradeable Firmware	Standard
Low Coolant Level Shutdown	Standard

Generator Set Size

Open Type
Length (mm)	2590
Width (mm)	1005
Height (mm)	1720
Net Weight (kg)	2135

This outline drawing is for reference only.See respective model data sheet forspecific model outline drawing number.Do not use for installation design.
Weights above are average. Actual weight varies with product configuration.
