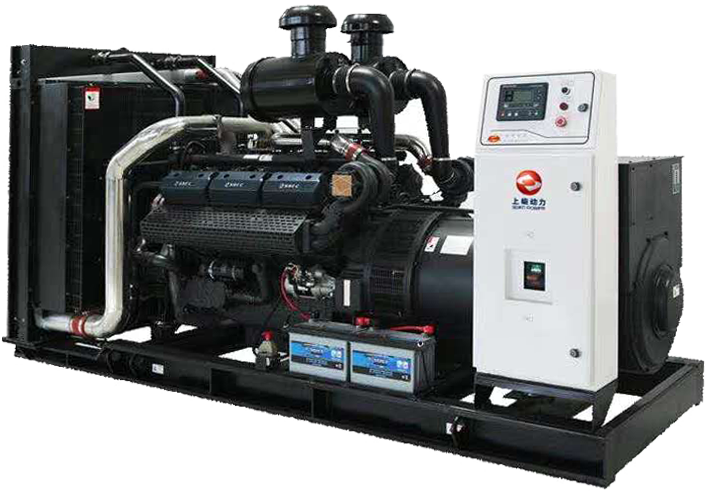

Name: Diesel Generator丨500GF丨SDEC
Brand: SHRAISE
SKU: SDEC 12GTAA27-G33
Availability: InStock
Rating: 5 (1 reviews)

Features

Heavy Duty Engine - Rugged 4-cycle industrial diesel delivers reliable power and fast response to load changes.

Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability.

Control system - The HGM6110Nelectronic control is standard equipment and provides total generator set system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown at fault detection.

Cooling system - Standard cooling package provides reliable running at up to 50 °C (122 °F)

Low noise Enclosures - humanized design, the overall design of the chassis is compact and small, which has the role of reducing noise and protecting the generator set. 2MM steel box, rain proof, strong, surface resistance to ultraviolet light, rain, wear, not easy to fade and other advantages, bolts use rust, corrosion resistant stainless steel bolts; Reinforced mechanical door lock, long service life; Internal use of flame retardant muffler sponge, effectively reduce noise, more friendly to the environment. The interior is equipped with a top operating light for easy operation at night.

Fuel tank - Independent bottom for easy disassembly and maintenance. With wavy baffle, suitable for cutting. With lock refueling port, convenient refueling, anti-theft. Standard mechanical fuel gauge, can be customized electronic fuel gauge, you can check the oil level in the display. The use of oxidation resistance, high temperature resistance, high pressure special high pressure tubing, long service life. Anti-flatulence special fuel tank cap, safe to use.

Innovative Design & Prototype Testing - are key components of RAISE POWER's success in "increasing power by design." But it doesn't stop there. Fully committed to component testing, reliability testing, environmental testing, structural and life testing, as well as testing applicable to CSA, NEMA, EGSA and other standards, gives you confidence when choosing a SHRAISE generator set that these systems will deliver superior performance.

Warranty & Service - Backed by a comprehensive warranty and worldwide distributor and dealer network.

Generator Set Specifications

	Standby 50 Hz		Prime 50 Hz
Model	kW	kVA	kW	kVA
500GF	500	625	450	563	12GTAA27-G33

Engine Specifications

Engine	12GTAA27-G33
Prime Power	505 kW
Engine Speed	1500 rpm
Compression Ratio	16:1
Aspiration	Turbocharged Air-cooling
Bore × Storke	135 mm × 155 mm
Displacement	26.6 L
No. of Cylinders	V-12
Speed Control	Electronic
Lubrication Capacity	55-65 L
Coolant Capacity	48 L

Alternator Specifications

Type	Brushless, 4-pole, all-copper, single-point, rotating magnetic field
Stator	2/3 pitch
Number of phases	3-phase
Insulation system	Class H, compliant with NEMA MG1-1.65
Power factor	1.0/0.8 hysteresis
Excitation method	Automatic voltage regulation (AVR)
Connection method	3-phase, 4-wire
Cooling method	Fan-cooled
Telephone influence factor (TIF)	<50°C, compliant with NEMA MG1-22.43
Telephone harmonic factor (THF)	<3%

Alternator Brands Optional

Generator Set Options

Fuel Tank
☑ Base Fuel Tank
□ External Independent Fuel Tank

Engine
☑ Engine Air Filter:
□ Standard
☑ Industrial
☑ Shutdown - Low Oil Pressure Fault Shutdown
☑ Extension Hose - Oil Drain
□ Engine Oil Heater

Alternator
☑ AVR Self-Excitation
☑ 120°C Temperature Rise Generator
□ 105°C Temperature Rise Generator
□ Generator Heater, Single Phase
□ Single-Phase Output Generator

Control
□ AC Output Voltmeter/Amperemeter
☑ Shutdown Switch - Emergency Stop
☑ Auxiliary Output Relay
☑ Auxiliary Signal Input and Relay Output

Electrical
☑ 1, 2, or 3 Circuit Breakers
□ 80% Load Protection Circuit Breaker
□ 80%/100% Load Overcurrent Protection Circuit Breaker
□ Battery Float Charger

Enclosure
□ T1 Class Low Noise Enclosure
☑ T2 Low-Noise Cabinet
□ Rainproof Cabinet with Muffler

Cooling System
☑ Shutdown - High Temperature, Low Coolant
☑ Warning - High Temperature, Low Coolant
☑ Extension Hose - Coolant Drain
□ Coolant Heater Option:
□ <4°C (40°F) - Cold Weather
□ <-18°C (40°F) - Extreme Cold

Exhaust System
☑ Exhaust Connector
☑ Exhaust Muffler

Towing System
□ Single-Axle or Double-Axle Trailer
□ Support Legs Mechanical/Hydraulic
□ Tires Tubeless/Solid Roll-On
□ Trailer Drawbar:
□ Off-Road Drawbar - <40 km/h
□ On-Road Drawbar - <80 km/h

Warranty Support
■ Basic Warranty - 2 year/3000 hours, primary
□ Basic Warranty - 1 year/1500 hours, primary
□ 3-year spare warranty optional
□ 5-year spare warranty optional

Generator Set Accessories

□ Coolant heater
□ Battery heater kit
□ Engine oil heater
□ Remote control displays
□ Auxiliary output relays (2)
□ Auxiliary configurable signal inputs (8) and relay outputs (8)
□ Annunciator - RS485
□ Audible alarm

□ Remote monitoring device
□ Battery charger – stand-alone, 12V
□ Circuit breakers
□ Enclosure Sound Level 1 to Sound Level 2 upgrade kit
□ Base barrier - elevated generator set
□ Mufflers - industrial, residential or critical
□ Alternator PMG excitation
□ Alternator heater

Control System

Intelligent Control - An integrated generator set control system that provides voltage regulation, engine protection, and an operator interface.

Monitoring - Provides battery monitoring and testing capabilities, as well as an intelligent starting control system.

RS485 - Network interface (standard) to devices such as remote annunciator for NFPA 110 applications.

Ambient operation - Suitable for operation in ambienet temperatures from -40°C to +70°C and altitudes to13,000 feet (5,000 meters).

Controller Brands Optional

Controller Function

Plain text multilingual LCD display	Simple user interface for easy operation
Mode Button	Automatic:Automatic start in case of mains failure
	Manual:Start is controlled by the starter and the device remains on. Transfer to load if utility power fails
	Stop:Start is controlled by the starter and the device remains on. If a utility fails, it will be transferred to the load
Prepare for operation/maintenance messages	Standard
Engine run time indication	Standard
Programmable start-up delay between 2-1500 seconds	Standard (Distributor Programmable Only)
Mains voltage loss/restoration adjustable	Real time
Future Set Ability Exerciser/Exercise Set Error Warning	Standard
Operation/alarm/maintenance log	50 events
Engine start sequence	Loop Start: 16 seconds on, 7 seconds off (maximum duration 90 seconds)
Starter Lock	The starter does not re-engage until 5 seconds after the engine stops
Smart Battery Charger	Standard
Charger Failure / Missing AC Warning	Standard
Low Battery/Battery Problem Protection and Battery Condition Indication	Standard
Automatic Voltage Regulation With Overvoltage and Undervoltage Protection	Standard
Under frequency/Overload/Step Over current Protection	Standard
Safety Fuse/Fuse Problem Protection	Standard
Automatic Low Oil Pressure	Standard
Over crank/Over speed (@ 72 Hz)/pm Sense Loss Shutdown	Standard
Engine High Temperature Shutdown	Standard
Internal Fault/ Miswiring Protection	Standard
Common External Fault Capability	Standard
Field Upgradeable Firmware	Standard
Low Coolant Level Shutdown	Standard

Generator Set Size

Open Type
Length (mm)	3600
Width (mm)	1400
Height (mm)	2000
Net Weight (kg)	4450

This outline drawing is for reference only.See respective model data sheet forspecific model outline drawing number.Do not use for installation design.
Weights above are average. Actual weight varies with product configuration.
