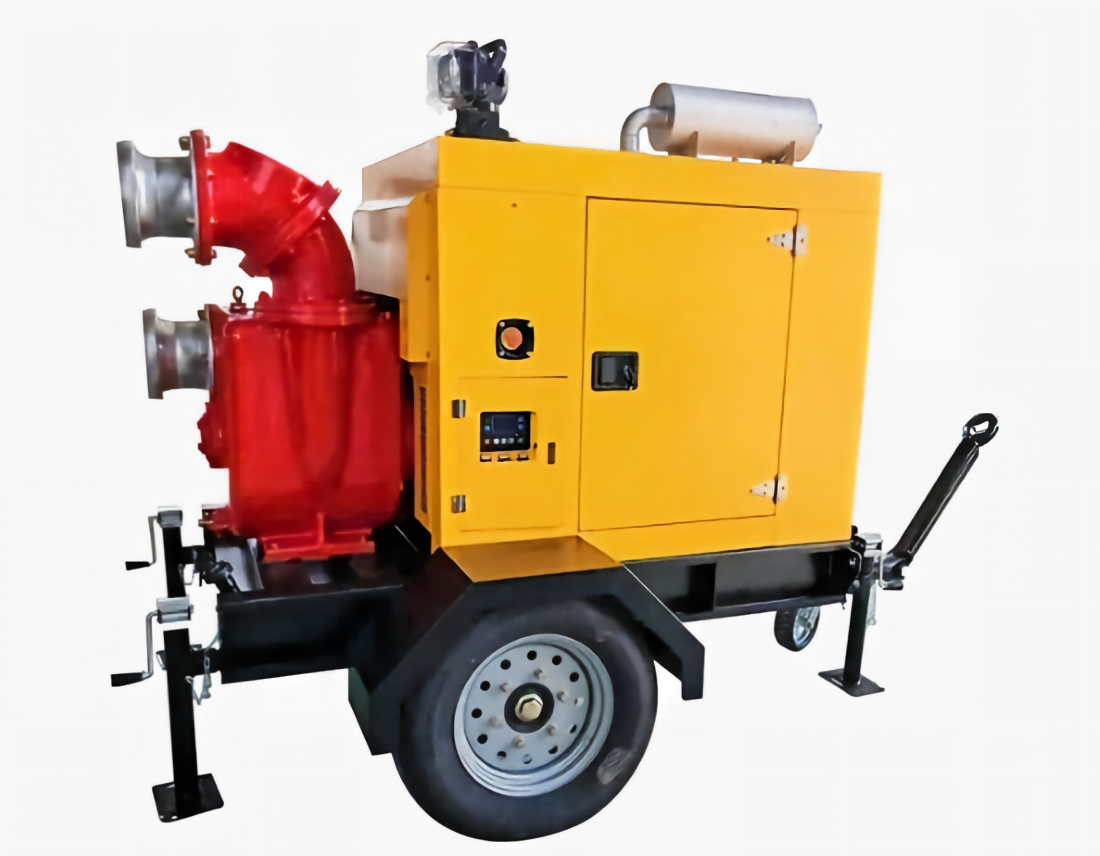

Name: RZZW150-200-20 6 Inch Self-Priming Diesel Water Pump, Drainage Pump, Fire-Fighting Pump, Irrigation Pump, Flood Control Pump, Trash Pump,
Brand: SHRAISE

Features

Heavy Duty Engine - Rugged 4-cycle industrial diesel delivers reliable power and fast response to load changes.

Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability.

Control system - The HGM6110Nelectronic control is standard equipment and provides total generator set system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown at fault detection.

Cooling system - Standard cooling package provides reliable running at up to 50 °C (122 °F)

Low noise Enclosures - humanized design, the overall design of the chassis is compact and small, which has the role of reducing noise and protecting the generator set. 2MM steel box, rain proof, strong, surface resistance to ultraviolet light, rain, wear, not easy to fade and other advantages, bolts use rust, corrosion resistant stainless steel bolts; Reinforced mechanical door lock, long service life; Internal use of flame retardant muffler sponge, effectively reduce noise, more friendly to the environment. The interior is equipped with a top operating light for easy operation at night.

Fuel tank - Independent bottom for easy disassembly and maintenance. With wavy baffle, suitable for cutting. With lock refueling port, convenient refueling, anti-theft. Standard mechanical fuel gauge, can be customized electronic fuel gauge, you can check the oil level in the display. The use of oxidation resistance, high temperature resistance, high pressure special high pressure tubing, long service life. Anti-flatulence special fuel tank cap, safe to use.

Innovative Design & Prototype Testing - are key components of RAISE POWER's success in "increasing power by design." But it doesn't stop there. Fully committed to component testing, reliability testing, environmental testing, structural and life testing, as well as testing applicable to CSA, NEMA, EGSA and other standards, gives you confidence when choosing a SHRAISE generator set that these systems will deliver superior performance.

Warranty & Service - Backed by a comprehensive warranty and worldwide distributor and dealer network.

Specifications

Model	RZZW150-200-20
Unit Structure	6-inch frame type
Inlet Diameter	DN150mm
Outlet Diameter	DN150mm
Max. Flow	200m³/h
Max. Head	20m
Pump Type	self-priming pump
Engine Model	Hua Yuan K4100D3
Fuel Type	Diesel
Lubricating Oil Type	10W-30 / SAE30

MEET YOUR NEEDS
Non-electric drainage solutions for all industry applications

Weichai Rz8-600 8 Inch Diesel Water Pump for Irrigation

CONVENIENT AND PRACTICAL UNIQUE FUNCTION

1.The Drainage System
2.Traction System
3.Paul Quickly Meet
4.Negative Pressure Resistant Suction Pipe
5.Bottom Valve
6.Drainage Belt

ADVABTAGE
• Convenient and practical unique function
• PLC automatic control, unit drainage easy and safe operation, installation and debugging gradually.
• Easy to move, can meet the application requirements of different environments and different occasions.
• The fixed type can realize the linkage drainage function of multiple units.
• It can realize automatic high water drainage function.
• It can be used in integrated fire drainage system.

ACCESSORIES
Negative pressure resistant suction pipe,Pressure resistant, wear resistant drainage belt,Special kit for unit maintenance,Diesel engine air filter, machine filter, oil filter,Suction foot valve,Strong industrial clamp,Paul quickly meet,elbow

CHARACTERISTICS OF MOBILE UNIT

SAFE AND RELIABLE
Drainage output is easy to get
• All the advantages of a silent type unit.
• Suitable for field work.
• Wheeled chassis reserved traction device, can adjust the vehicle balance at any time.
• Equipped with alarm lamp, side lamp, fog lamp, etc., in line with transportation safety standards.
• Single or double axle trailer is available, mechanical or automatic braking is optional, meets many requirements.
• Convenient refueling system, refueling port can be locked.

Excellent Safety Performance
• Operation safety - the radiator and rotating parts of the unit are protected from direct man-machine contact. The control panel is equipped with a door lock and an emergency stop switch. The emergency stop device is installed outside the box for easy use in emergency situations.

Low Carbon Environmental Protection
• Fully enclosed noise reduction optional top-mounted stainless steel fence unit access door is sealed around the use of special automotive sealant, in the inlet/exhaust vents and other aspects of the full integration of noise reduction design concept, further reduce noise.

High Quality Muffler Material And Design
• The inner wall of the unit adopts new special 50MM flame retardant silencer cotton, door set. Around the use of sealed plastic, can absorb a large number of machine and block the use of convenient and fast Paul quick access convenient box refueling port group in the operation of the emission of noise and heat.

TRAILER CHASSIS

TOW BAR
• Road version traction bar
• Non road version traction bar

WHEELS AND TIRES
• Auto vacuum tires are used
• Solid pressure tires are used

SAFETY CHAIN
• All trailer sets are fitted with safety chains
• ATM > 22.5T trailer with at least one safety chain;
• 2.5 T < ATM < 3.5T, must have two safety chains;
• 3.5 T < ATM < Between 4.3t, the diameter size of the chain shall be > 7.1mm,broken chain load < 6.4 T;
• 4.3 T < Between ATM 4.5T, chain diameter size should be >; 9.5mm, chain break load > 11.6 T

CONNECTION OF SAFETY CHAIN TI TRACTION BAR
• Chains are not permanently linked to trailers by hooks.
• Safety chain connection can independently withstand the following external forces without causing deformation, crack or fracture of the entity:
• Radial tensile force (N) =1.5 × 9.81 x ATM
• Vertical tensile force (N) =0.5 ×9.81 ×ATM

SECURITY
• The safety brake wire rope is connected with the main car to ensure that the trailer can brake reliably in case of accidental decoupling.
• The wheel and shaft can last for 15 years.

SERVICE BRAKE
• ATM= the total weight (KG) of the trailer set at full load, automatic braking;
• Non - road version: on the road, no service brake.
• There is no brake below 0.75T, and machinery above 0.75T.
• The brake is generally guaranteed to be above or below 100 kops.

ABILITY TO PASS
• Chassis off the ground > 250 mm
• The Angle between the front and rear end accessories of the wheel and its tangent plane and the ground > 18 °

HIGH RELIABILITY

EASY TO OPERATE
Easy to operate control system
• The control system integrates digital technology and takes microprocessor as the core.
• Multiple languages to choose from, automatic control, economical operation;

Convenient refueling and water device
• Built-in bottom fuel tank;
• External configuration refueling port;
• Unloading port of the base;• A water inlet is arranged above the box body.

Quick connection pipe connection device
• Using Paul quick joint, so that the pipeline connection work more easily and quickly.

Easier maintenance
• All routine maintenance can be performed on either side of the equipment;
• Wide access door allows you to access all parts of the unit.

STRONG POWER AND STABLE PERFROMANCE
powerful engine and pump body
• Equipped with high-quality engine and high-performance pump body, strong power;
• High torque, easy to maintain, easy to start, fast drainage;
• Special gear ring coupling is used between the engine and pump body to effectively reduce vibration and make the operation more stable.
• All movable devices are effectively fixed to further improve the damping effect.

APPLICATION SCENARIOS

• Municipal drainage
• Flood control and supplies
• Water treatment
• Paper industry
• Mining industry
• Manufacturing
• Hotel industry
• Construction industry
• Oil field
• Agricultural irrigation
