Name: Silent Gas Generator RZ30000-LPG/NG - 18-26KW 230V/400V 50Hz/60Hz
Brand: SHRAISE
SKU: Silent Gas Generator RZ30000-LPG/NG - 18-26KW 230V/400V 50Hz/60Hz
Availability: InStock
Rating: 5 (1 reviews)

Features

Heavy Duty Engine - Rugged 4-cycle industrial diesel delivers reliable power and fast response to load changes.

Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability.

Control system - The HGM6110Nelectronic control is standard equipment and provides total generator set system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown at fault detection.

Cooling system - Standard cooling package provides reliable running at up to 50 °C (122 °F)

Low noise Enclosures - humanized design, the overall design of the chassis is compact and small, which has the role of reducing noise and protecting the generator set. 2MM steel box, rain proof, strong, surface resistance to ultraviolet light, rain, wear, not easy to fade and other advantages, bolts use rust, corrosion resistant stainless steel bolts; Reinforced mechanical door lock, long service life; Internal use of flame retardant muffler sponge, effectively reduce noise, more friendly to the environment. The interior is equipped with a top operating light for easy operation at night.

Fuel tank - Independent bottom for easy disassembly and maintenance. With wavy baffle, suitable for cutting. With lock refueling port, convenient refueling, anti-theft. Standard mechanical fuel gauge, can be customized electronic fuel gauge, you can check the oil level in the display. The use of oxidation resistance, high temperature resistance, high pressure special high pressure tubing, long service life. Anti-flatulence special fuel tank cap, safe to use.

Innovative Design & Prototype Testing - are key components of RAISE POWER's success in "increasing power by design." But it doesn't stop there. Fully committed to component testing, reliability testing, environmental testing, structural and life testing, as well as testing applicable to CSA, NEMA, EGSA and other standards, gives you confidence when choosing a SHRAISE generator set that these systems will deliver superior performance.

Warranty & Service - Backed by a comprehensive warranty and worldwide distributor and dealer network.

Frequency Hz	50		60
voltage V	220	230V/400V	120V/240V	230V/400V
LPG Rated output kW	18	18	24	24
LPG Max output kW	20	20	26	26
NG Rated output kW	16	16	22	22
NG Max output kW	18	18	24	24
Power factor Cosfi	1	0.8	1	0.8
Phases	Single phase	Equal power	Single phase	Equal power
Excitation mode	Self-oscillating constant voltage (with AVR)
Insulation grade	H
Engine model	R999
Engine mode	Air-cooled, four-stroke, OHV90° tilting, V-type twin-cylinder
Bore×Stroke mm	2-90×78.5
Displacement cc	999
Max output (kw)	28
Cooling mode	Air
Start mode	Electric-Start
Oil Capacity (L)	2.4
Oil model	SAE15W/40
Gas type	LPG/NG
Speed rpm	3000/3600
Type	Silent
Noise level （7m） dB	≤72
Battery	DC12V/30Ah
Diemension（L×W×H）mm	1415×760×875
N/G kg	255/280

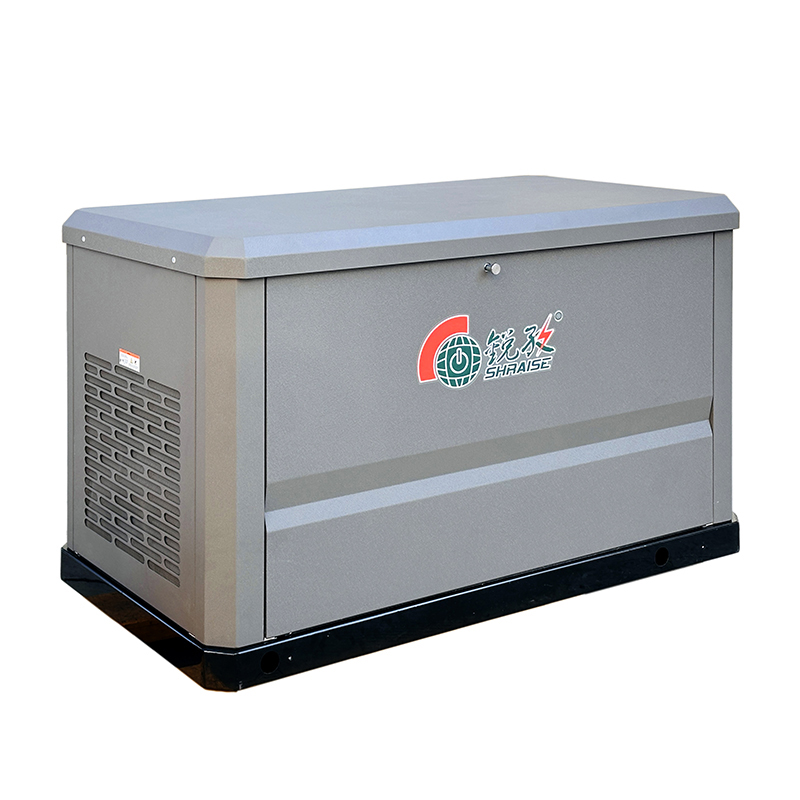

The Silent gas generator features a robust and stable design with a matte-finished paint job, offering a sleek and elegant appearance. Its soundproof enclosure effectively reduces operational noise. The unit supports dual-fuel operation with liquefied petroleum gas (LPG) and natural gas (NG), making it ideal for stationary applications such as villas and residences with stable gas supply and minimal mobility needs, serving as a reliable backup or primary power source.

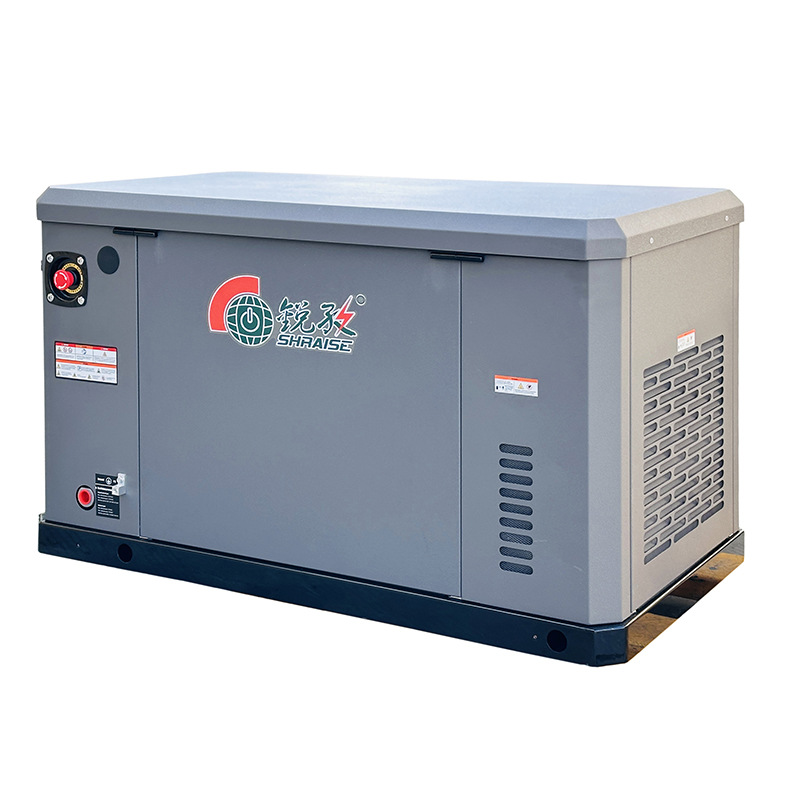

The ventilation grilles on both sides of the enclosure ensure efficient heat dissipation, maintaining core components' stability and longevity. Critical interfaces and safety devices are centrally located at the rear, featuring a clear layout. Key components include the gas inlet port, equipment grounding terminals, and a prominent red emergency shutdown button. This design facilitates quick pipeline connections, secure grounding, and immediate emergency response, while ensuring easy maintenance.

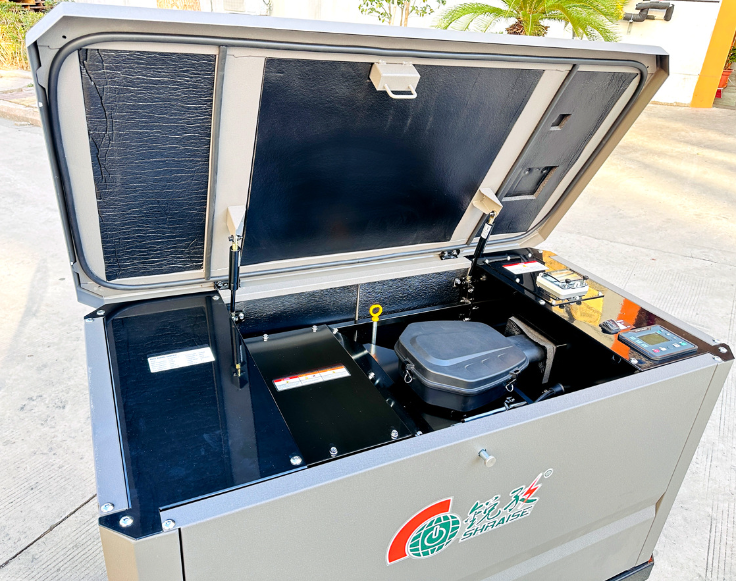

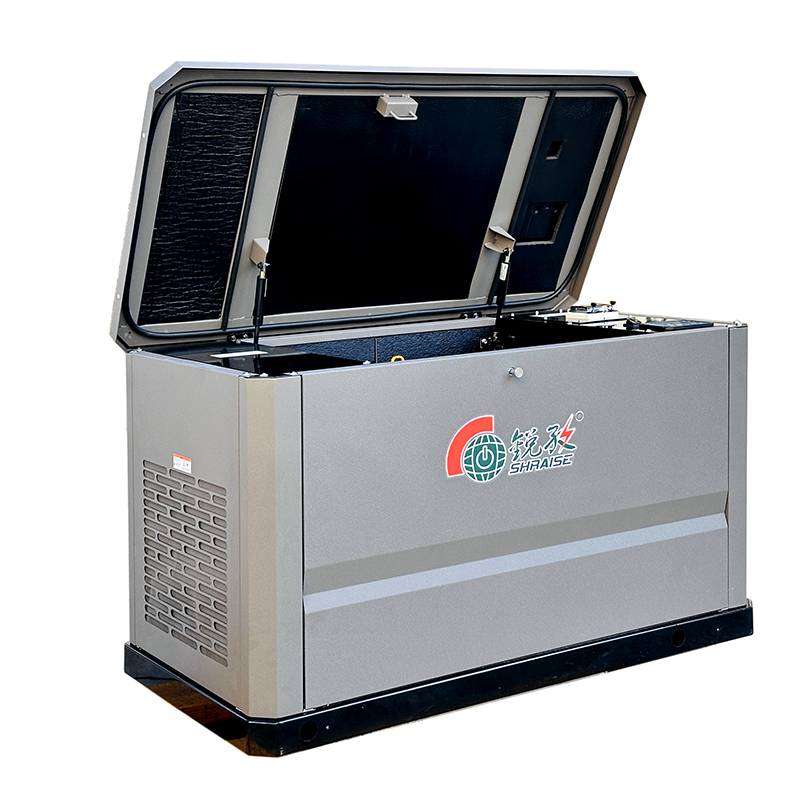

The top cover plate of the housing can be fully opened, with integrated hydraulic support rods on the inner side that automatically stabilize and lift the structure, freeing the operator's hands. Maintenance personnel can directly access core components such as the engine and control system from above without obstruction, simplifying routine inspection, maintenance procedures, and pre-startup preparations, thereby significantly enhancing operational convenience.

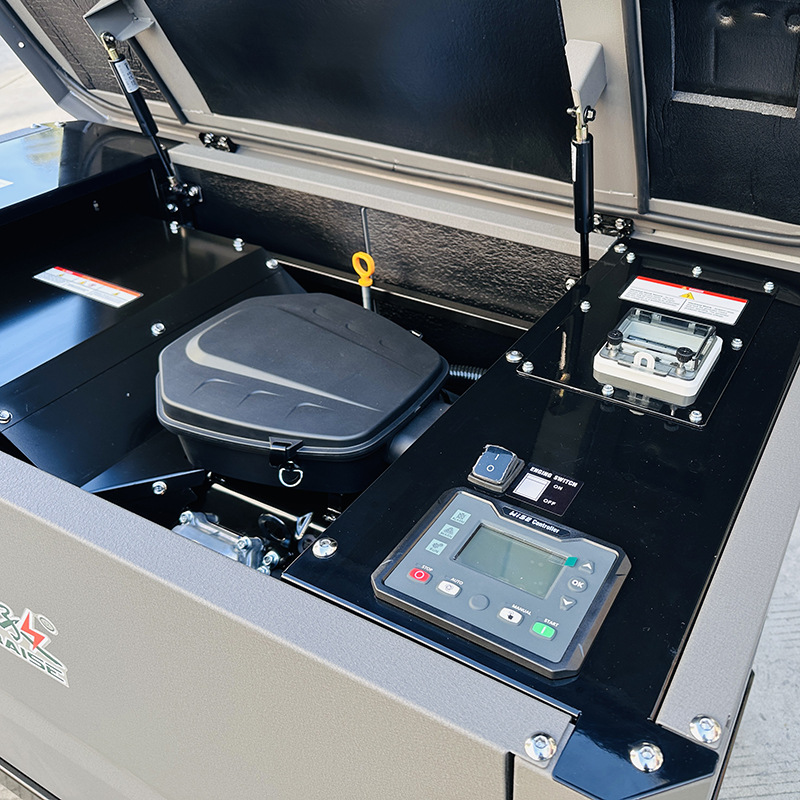

The optimized internal structure of the unit features a compact layout and high integration, efficiently arranging all core functions within limited space. The top cover is opened for operation before startup and closed during runtime. The box's inner walls and joints are filled with 4 cm thick flame-retardant soundproofing cotton, while the top cover's inner side is lined with 1.5 cm soundproofing cotton and sealed with gaskets, collectively forming an effective soundproofing layer. Actual measurements show the operational noise level at 7 meters does not exceed 72 decibels, significantly lower than conventional units in the same class, meeting strict noise requirements for villa areas and other quiet application scenarios.

The enclosure features an automatic circuit breaker protection switch that instantly cuts off the circuit when detecting abnormalities like overcurrent or short circuits, providing critical protection for the generator set and downstream electrical equipment. The control panel integrates a three-in-one digital display, allowing simultaneous monitoring of voltage, frequency, and cumulative operating time. With a centralized layout and clear operational logic, the manual start button ensures intuitive operation.

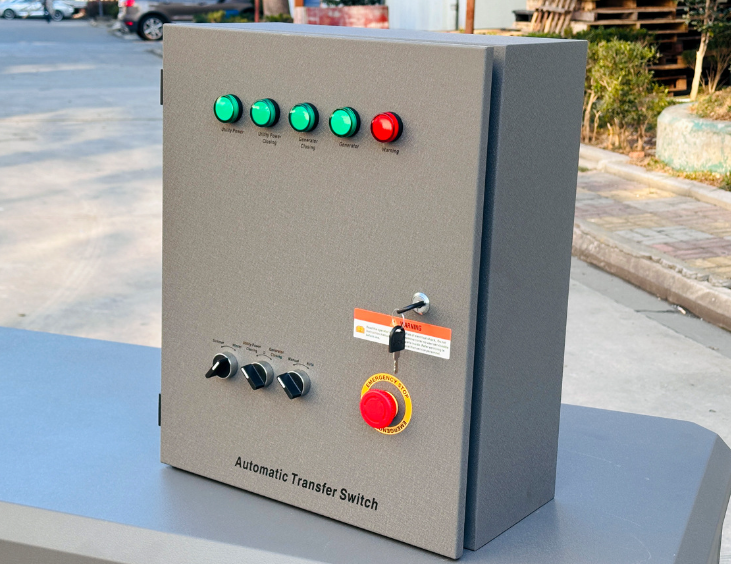

This generator set is compatible with Automatic Transfer Switch (ATS) systems. When the mains power fails, the ATS automatically detects the outage and immediately activates the generator set, switching the load to the backup power source within seconds to ensure uninterrupted power supply. Upon restoration of mains power, the ATS automatically switches the load back and controls the generator set to cool for a delay before shutting down, with the entire process requiring no manual intervention. This optional feature is particularly suitable for scenarios demanding high power continuity, effectively ensuring the continuous and stable operation of critical equipment.
