Model |

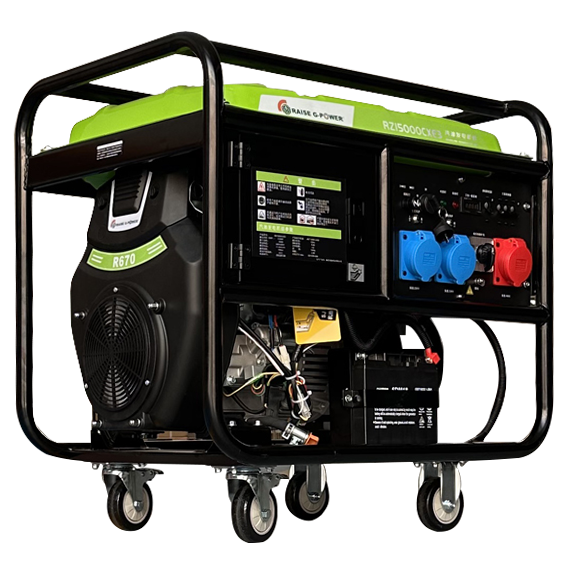

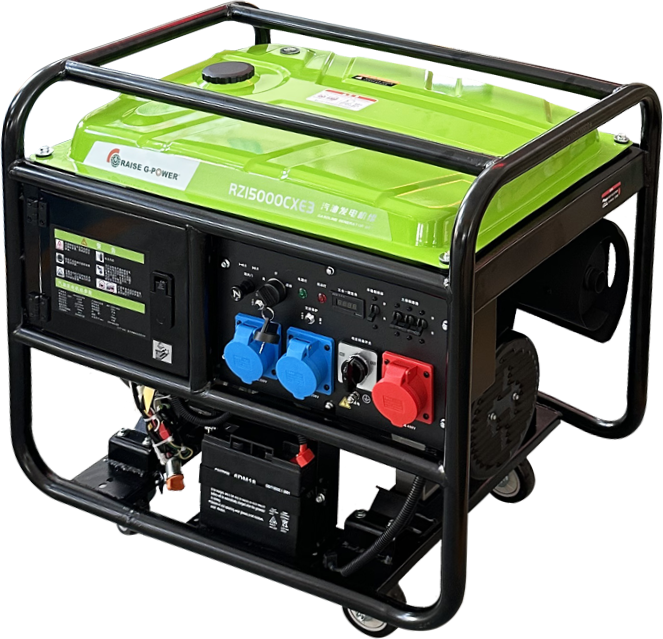

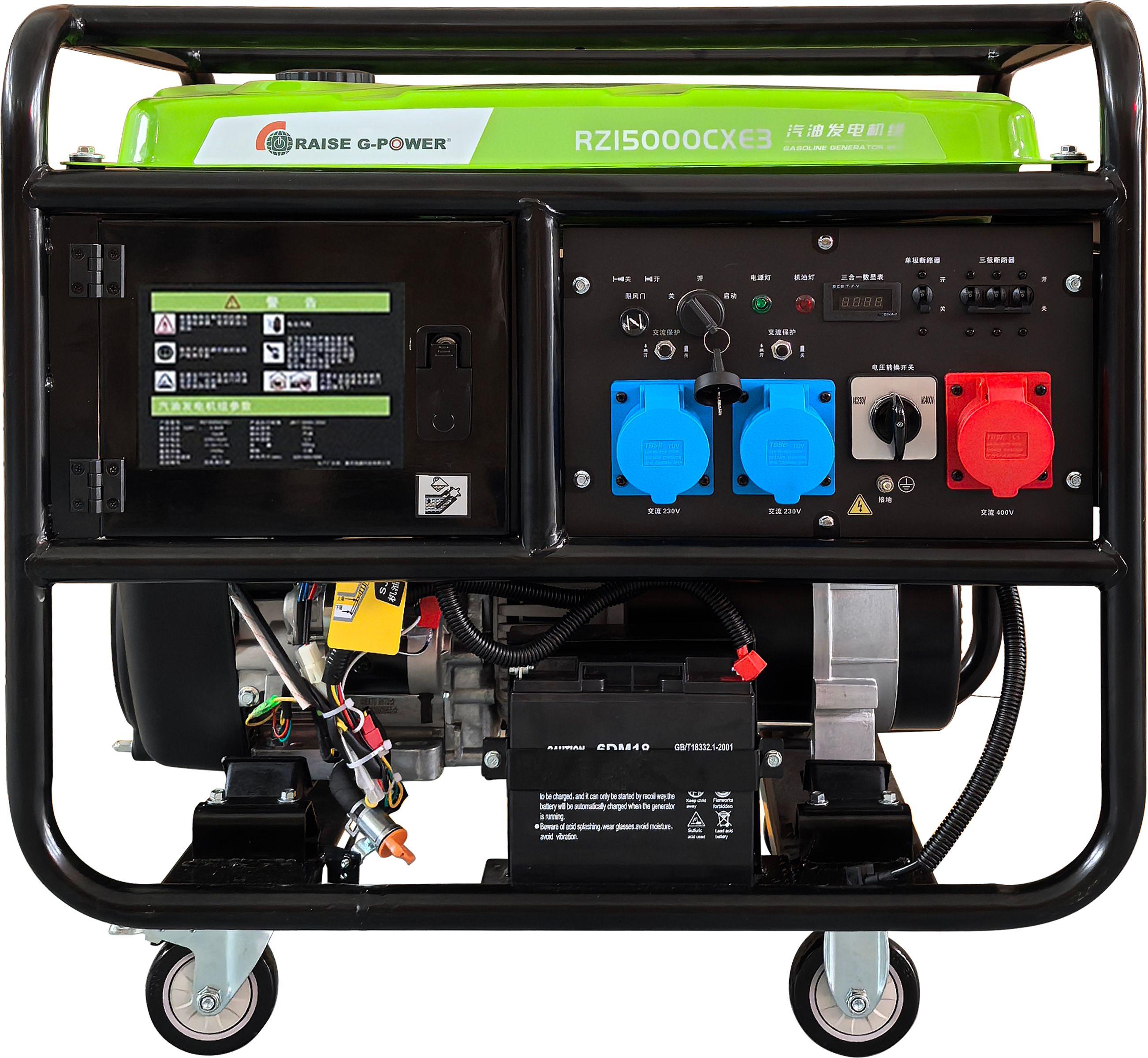

RZ15000CXE3 |
|
|
Phase |
1 - Phase |
3 - Phase |
|
Rated Power (kW) |
10.0 |
|
|
Max. Power (kW) |
11.0 |
|
|
Power Factor |
1.0 |
0.8 |
|
Alternator Fator |
2-stage Rotating Winding Synchronous Type |
|
|
Rated Coltage (V) |
230 |
400 |
|
Rated Current A) |
43 |
18 |
|
Frequency (Hz) |
50 |
|
|
DC Output (A) |
- |
|
|
Engine Model |
R720D |
|
|
Engine Type |
V type, 2-Cylinder, 4-stroke, Air-cooled (OHV) |
|
|
Bore × Stroke (mm) |
78 × 70 |
|
|
Displacemnet (cc) |
720 |
|
|
Engine Power (kW/rpm) |
14/3600 |
|
|
Start Type |
Electric Starter |
|
|
Fuel Tank Capacity (L) |
46 |
|
|
Running Time (hr) |
12 @100% Load, 20 @50% Load |
|
|
Lubricating Oil Capacity (L) |
1.3 |
|
|
Noise (dBA@7m) |
72 - 82 |
|
|

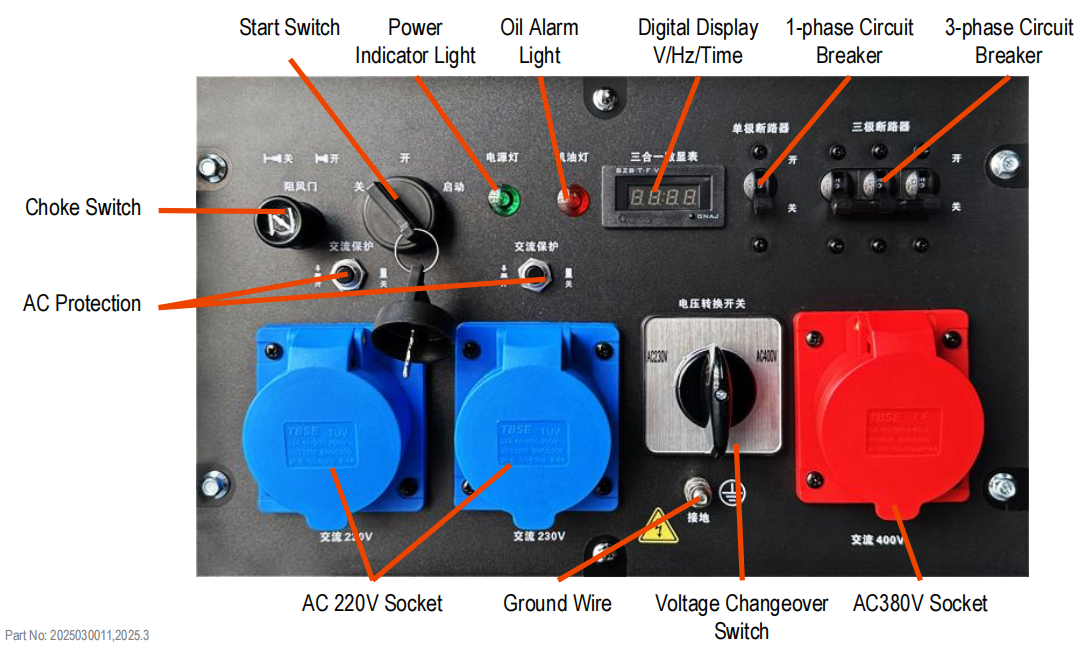

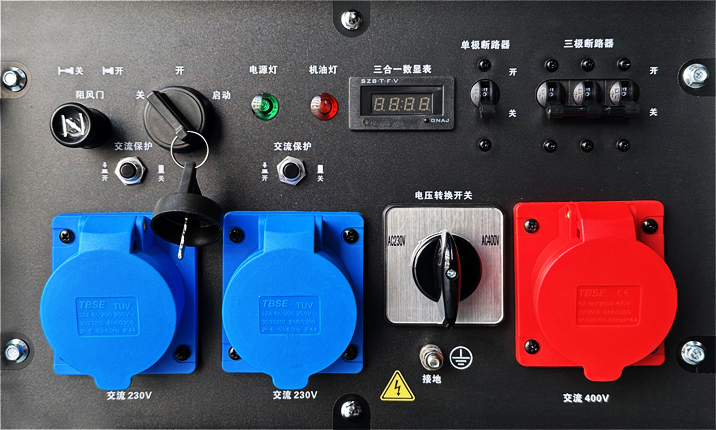

Overload Protection |
● |
|
|
Fuel Gauge |
● |
|
|
Digital Display |
Voltage / Frequency /Running time |
|
|
Output Indicator |
● |
|
|
Oil Level Protection |
● |
|
|
Automatic Choke |
- |
|
|
Leakage Protection |
● |
|
|
Casters |
Solid Rubber Casters |
|
|
Warranty |
1 Year Limited |
|
|
Accessories |
AC220V Industrial Plug × 1, AC380V Industrial Plug×1, Funnel, Spark Plug Socket, Repair Kit, Caster Assembly, User manual |
|
|

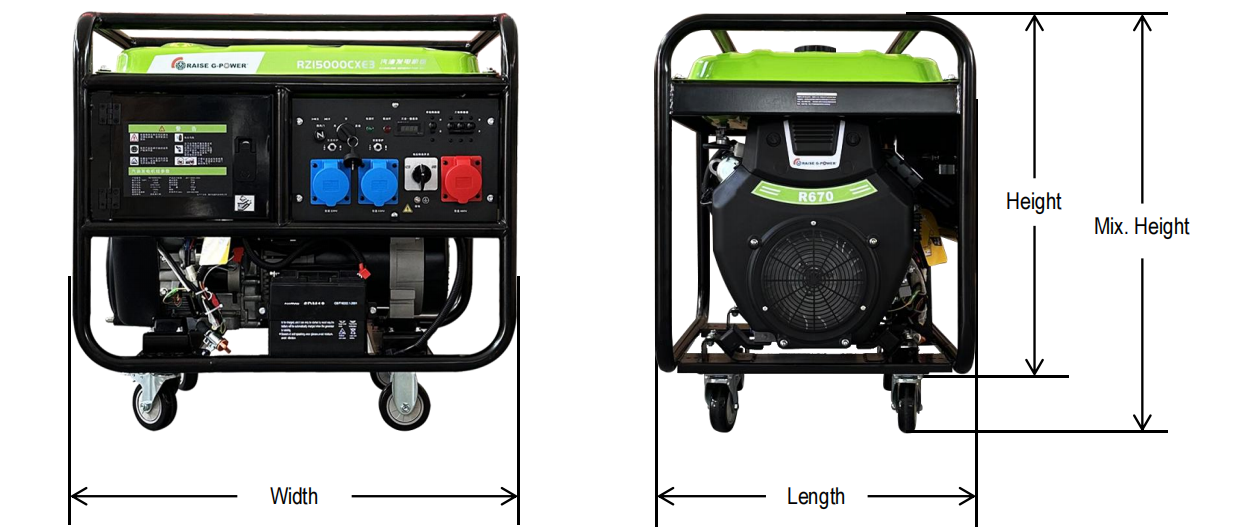

Unit Size: L × W × H (mm) |
825×616×728 |
|
Mix. Unit Size: L × W × H (mm) |
825×616×816 |
|
Packaging Size: L × W × H (mm) |
880×700×900 |
|
Net Weight (kg) |
150 |
|
Gross Weight (kg) |
165 |
|
Packing Quantity (GP/HQ) |
40 / 86 |
