Model |
RZ18000CXE3 |
|
|
AC Rated Power(kW) |
13 |
|
|
AC Max. PowerkW) |
14 |
|
|
Voltage(V) |
220 |
220 / 380 |
|
Frequency(Hz) |
50 |
|
|
Rated Current(A) |
52.2 |
52.2/21.7 |
|
Engine Model |
R740D |
|
|
Engine Type |
V type, 2-Cylinder, 4-Stroke, Air-cooled(OHV) |
|
|
Displacement(cc) |
740 |
|
|
Engine Power(kW/rpm) |
16.8/3600 |
|
|
bORE×Strke(mm) |
78×70 |
|
|
Lubricating Type |
10W-30 / SAE 30 |
|
|
Lubricating Capacity(L) |
1.6 |
|
|
Lubricating Type |
Compressive, Splash |
|
|
AVR |
Yes |
|
|
Choke Position |
On the panel |
|
|
fuel Cock Position |
On the panel |
|
|
Start Method |
Electric Starter |
|
|
Start Battery |
Yes |
|
|
Battery Type |
Lead Batteries(12V DC, 36Ah) |
|
|
Low Oil Pressure Alarm |
Yes |
|
|
Ground Terminal |
Yes |
|
|
Start Switch Type |
OFF/START/RUNNING |
|
|
Start Switch Position |
On the panel |
|
|
LED Light Swich |
On the panel |
|
|
Display Meter |
3-1, Displaying Voltage, Frequency, Running Time |
|
|
Fuel Tank Capacity(L) |
46 |
|
|
Continuing time@100% Load |
7 hr |
|
|
Continuing time@50% Load |
12 hr |
|
|
voltage Change-over Switch |
On the panel |
|
|
Phase |
1-phase & 3-phase Equal Power |
|
|
Fuel Level Indicator |
On the Fuel Tank |
|
|
Sheel Component |
10-inch solid rubber wheels, support and folding handlebars |
|
|
Compression Ratio |
8.5:1 |
|
|
Warranty |
1 Years Ltd. |
|
|
Shipping List |
Wheel components, maintenance tool kit, user manual and other paper documents |
|
|

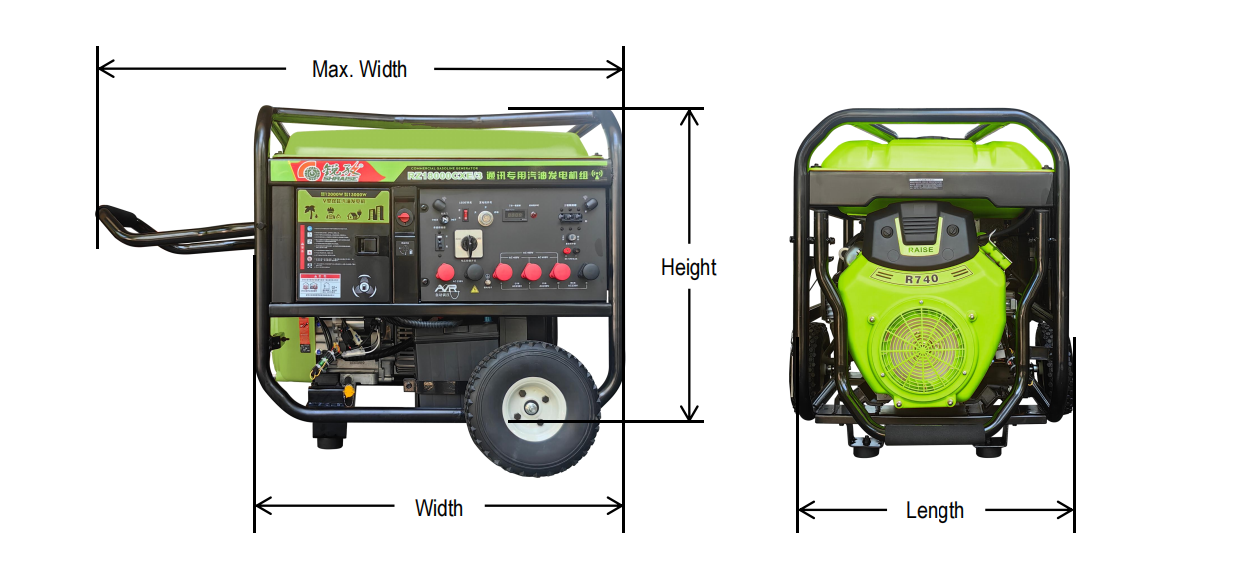

Unit Size: L × W × H (mm) |
825×616×728 |
|
Mix. Unit Size: L × W × H (mm) |
1225×616×728 |
|
Packaging Size: L × W × H (mm) |
930×720×1000 |
|
Net Weight (kg) |
150 |
|
Gross Weight (kg) |
178 |
|
Packing Quantity (GP/HQ) |
40 / 86 |
