Model |

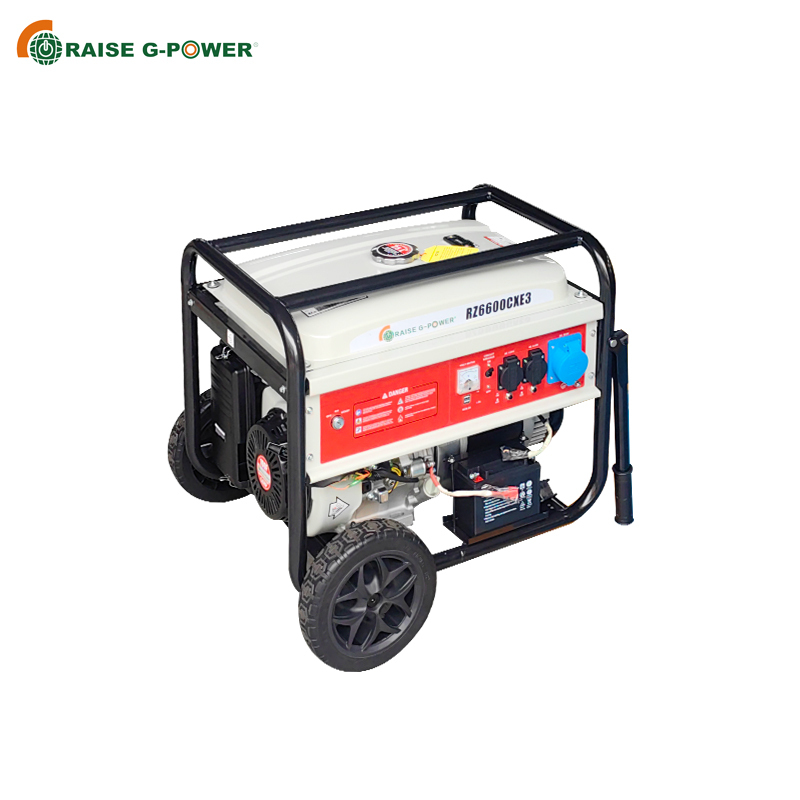

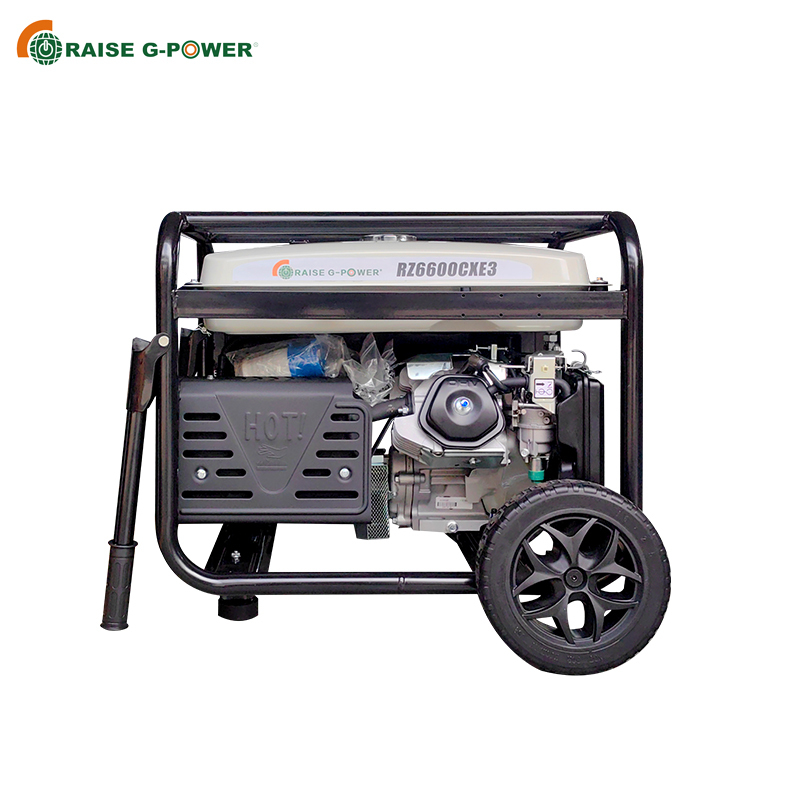

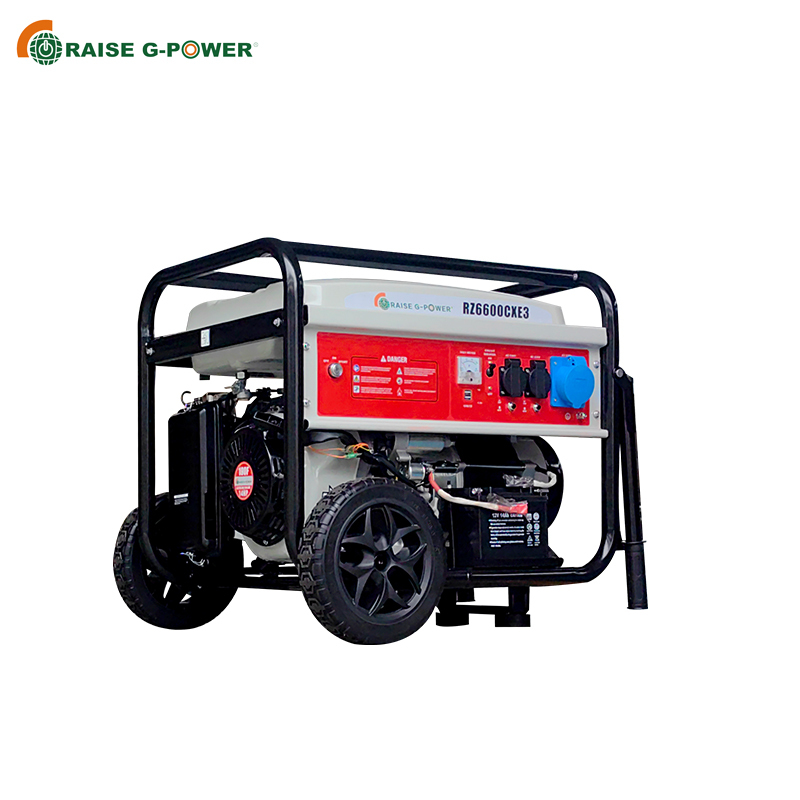

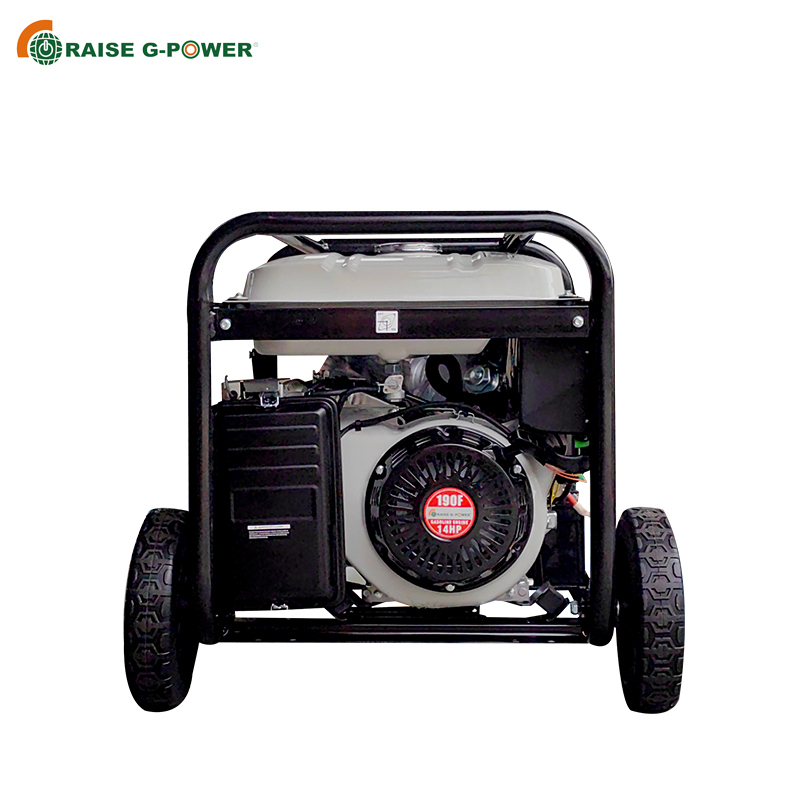

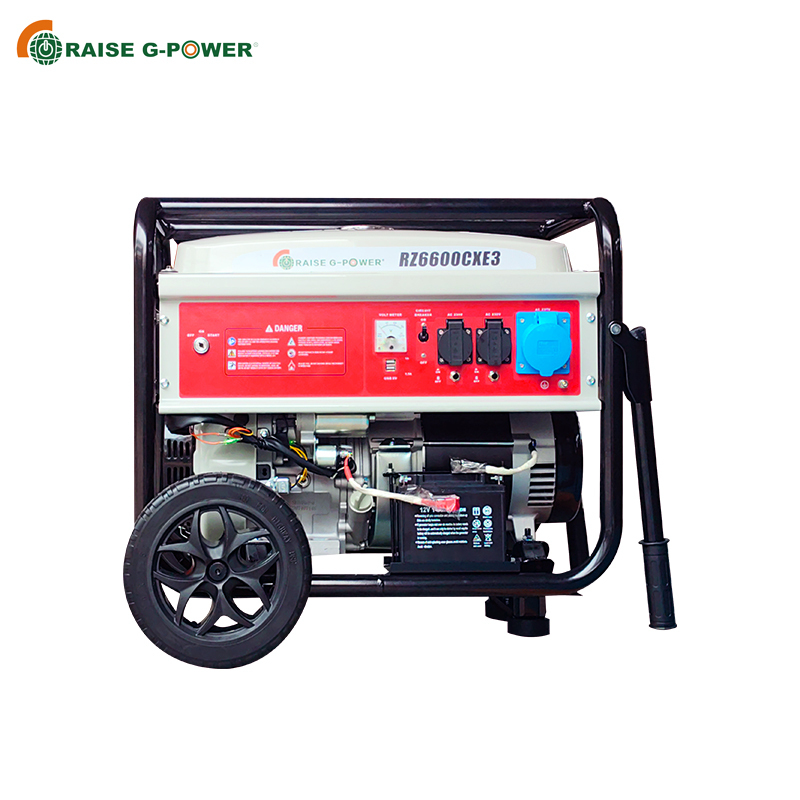

RZ6600CXE3 |
|
|
Phase |
1 - Phase |
|
|
Rated Power (kW) |
5.0 |
|
|
Max. Power (kW) |
5.5 |
|
|
Power Factor |
1.0 |
|
|
Alternator Fator |
2-stage Rotating Winding Synchronous Type |
|
|
Rated Coltage (V) |
230 |
|
|
Rated Current A) |
21.7 |
|
|
Frequency (Hz) |
50 |
|
|
DC Output (A) |
5V-2A |
|
|
Engine Model |
RZ190FE |
|
|
Engine Type |
Single-Cylinder, 4-stroke, Air-cooled (OHV) |
|
|
Bore × Stroke (mm) |
90 × 66 |
|
|
Displacemnet (cc) |
420 |
|
|
Engine Power (kW/rpm) |
9.5/3600 |
|
|
Start Type |
Recoil Starter/Electric Starter |
|
|
Fuel Tank Capacity (L) |
25 |
|
|
Running Time (hr) |
9 @100% Load, 15 @50% Load |
|
|
Lubricating Oil Capacity (L) |
1.1 |
|
|
Noise (dBA@7m) |
72 - 82 |
|
|
Overload Protection |
● |
|
|
Fuel Gauge |
● |
|
|
Voltmeter |
● |
|
|
DC Output |
● |
|
|
Oil Level Protection |
● |
|
|
Automatic Choke |
- |
|
|
Leakage Protection |
● |
|
|
Casters |
Solid rubber wheels, support and folding handles |
|
|
Warranty |
1 Year Limited |
|
|
Accessories |
AC220V Industrial Plug × 2, Funnel, Spark Plug Socket, Repair Kit, Repair tool kit, User manual |
|
|

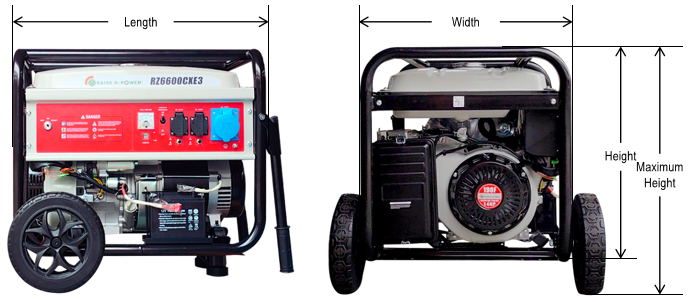

Unit Size: L × W × H (mm) |
760×550×550 |
|
Mix. Unit Size: L × W × H (mm) |
825×616×580 |
|
Packaging Size: L × W × H (mm) |
780×570×580 |
|
Net Weight (kg) |
95 |
|
Gross Weight (kg) |
100 |
|
Packing Quantity (GP/HQ) |
128 / 228 |
